Lightweight and compact.
The H400 f2.4 astrograph is the ideal platform for widefield imaging and all-sky surveys. The H400 features a 5-inch corrector and motorized focusing with absolute encoders. The H400 ensures precise focus and high-resolution data acquisition of the night sky – in the shortest possible time! Fits perfectly with the /ASA Direct Drive mounts/.
The H400 was selected as the instrument of choice for the Super Wasp II Exo-planet program, a consortium of universities and space agencies including: Geneva University, Leicester University, Queens University Belfast, the University of Warwick, the German Aerospace Center DLR, and the GOTO project.

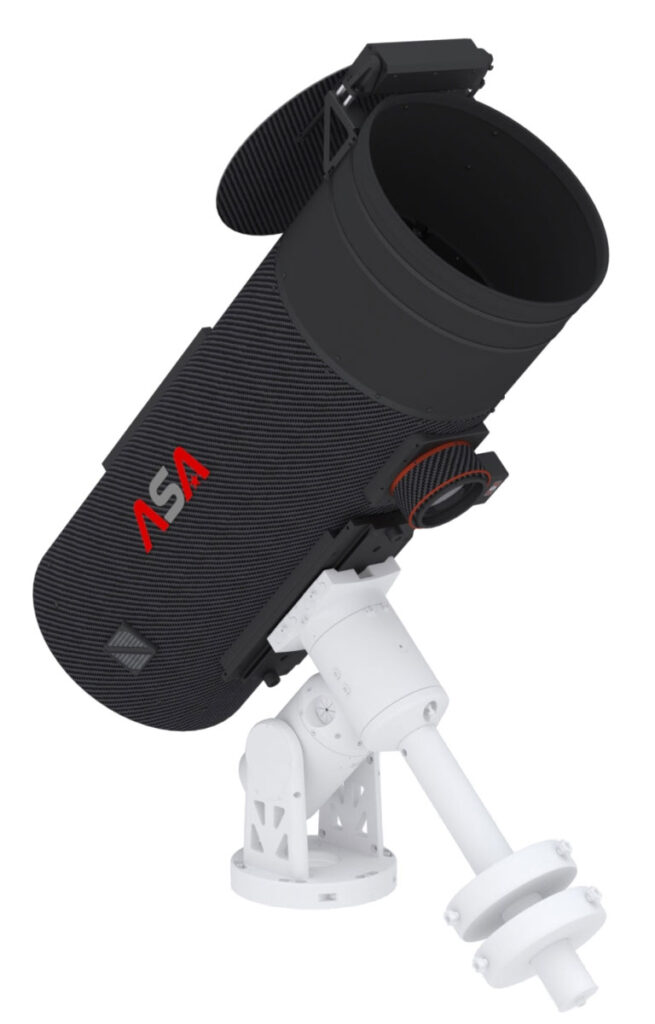

This very fast 400mm telescope is also available as a /package in combination with a ASA DDM100 Direct Drive mount!/
Main Facts
Optical design: Hyperbolic
Linear central obstruction: 45%
Focal length: 960mm
Focal ratio system: f2.4
Clear Aperture / Focal Ratio Primary Mirror: 400mm (15.7 inch) / f3
Image field: 70mm (4.2 degrees)
Mirror material: Fused silica
Surface quality: >94 strehl
Microroughness: 1nm RMS / <0.7nm Ra
Coating: Al+SiO2 >96 %
Back Focus from flange: 91.56mm
Weight tube: 57kg / 126lbs
Technical Details
Electronic: Our closed loop direct drive systems, sensor technology and observatory safety modules play a major role in achieving optimum results. All moving accessory components are equipped with high-resolution encoders and closed-loop feedback systems. We provide event timer modules, and remote controllable Software. /More/
Optic: Only the best for your telescope!We believe that the most important part in producing optics is the testing. So ASA decided that we invest in the best test equipment available, remove any measuring error as good as possible and use real values in our specifications. /More/
Technology: Our mounts are manufactured with the lastest CNC technology. /More/
Software: Platform independent API Connection. /More/
