FLI Cameras

Kepler KL400 BI CMOS Camera: 95% Peak QE, 1.6 e- Noise

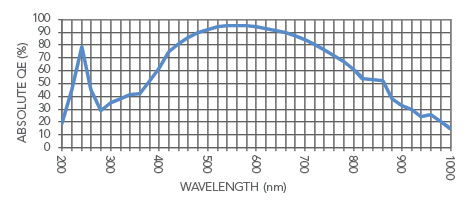

Absolute Quantum Efficiency

With TVISB Coating

Transmissivity Curves

Variants

	KL400 TVISB G1 (BI)	Gsense400 back illuminated TVISB grade 1
	KL400 TVISB G1 45mm (BI)	Gsense400 back illuminated TVISB grade 1 45mm shutter
	KL400 TVISB G2 (BI)	Gsense400 back illuminated TVISB grade 2
	KL400 TVISB G2 (BI) 45mm	Gsense400 back illuminated TVISB grade 2

The Kepler Series is a giant step forward in throughput, providing faster digitization, higher speed interfaces, and up to 35 channel readout. Sensors currently supported include front and back illuminated sCMOS. Future developments will include interline transfer CCDs and EMCCDs.

USB3.0 (3 Gbps)
Optional QSFP high speed fiber interface
Optional Electromechanical Shutter for Remote Acquisition of Calibration Frames
Choice of Windows - View Transmissivity Curves (left)
Air Cooling or Liquid Cooling (LC connectors sold separately)
Deep Cooling (up to 45C below ambient)
Optional Anti-Dew Technology (ADT)
Kepler KL400 Operational Modes

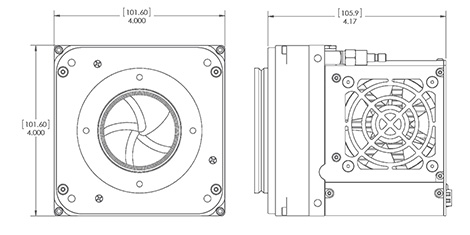

Small Footprint (as small as 10.2 x 10.2 x 10.7 cm)
Reaches operating temperatures in 10 minutes
Overview KL camera series

The Kepler KL400 provides ultra-high sensitivity, ultra-low noise with high frame rates, all at a game-changing price to performance ratio.

Download Product Data Sheet

Sensor Type	Back Illuminated CMOS
Sensor	GPixel GSense400BSI
Shutter Type	Rolling
Active Pixels	2048 x 2048
Pixel Size (microns)	11 x 11 µm
Imaging Area (Diagonal)	22.5 X 22.5 mm (31.8 mm)
Full Well Capacity	90000 electrons
Typical Readout Noise	1.6 e-
Dynamic Range	94.6 dB
Frame Rate	24 fps (Rolling HDR)
Cooling Method	Air and Liquid (see Note 1)
Max. Cooling (Air)	45°C below ambient
Temperature Stability	0.1°C
Dark Current (typical)	0.015 eps at -20C
Interface	USB 3.0 (Optional QSFP; see Note 2)
Data Bit Depth	16 bit (see Note 3)
Optional shutter	45mm
Optional Mounts	Nikon or Canon
Subarray Readout	Standard
External Trigger In/Out	Standard
SDK / Software	Kepler SDK / FLI Pilot
Weight	3 lbs (1.3 kg)
Note 1: Liquid circulation connectors sold separately. Note 2: QSFP = Quad Small Form factor Pluggable: high speed fiber optic interface Note 3: 16 bit data merged from two 12 bit conversions

Recommended accessories

A versatile combination KL400 with filter wheel and Hubble Filterset
