Spectroscopes

Whoppshel Spectroscope

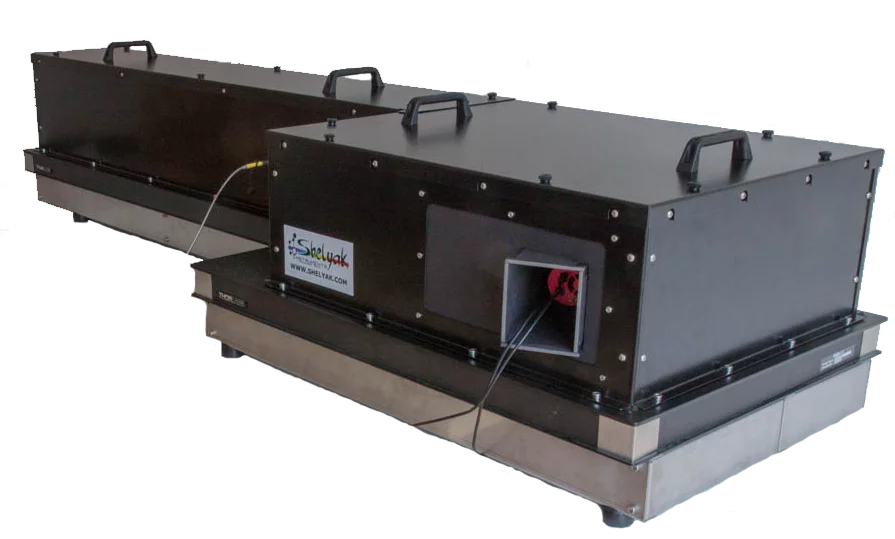

Whoppshel detour The Whoppshel is the ultimate spectroscope in the Shelyak range. A very high resolution instrument (R >25.OOO), it is intended for large instruments (telescopes over 700mm in diameter). A fibre-optic ladder spectro, it is particularly suitable for “exoplanet hunting”.

The whoppshel is a fibre optic spectrograph with a resolution of R >25.000. The various elements of the spectrograph are mounted on an optical bench.

Here are 2 articles on tests that have been carried out on 2 different telescopes:

First light a high resolution echelle spectroscope on a 40 cm diameter telescope,
The Whoppshel in use on a 60 cm telescope

Specifications

Resolution:>25.000 (depending on orders)
Spectral range: from about 3920 to 7500 (order 46 to 87)
CCD camera: ATIK 460ex (SONY ICX 694 sensor)
Magnitude limit: 8-9 with a 60cm telescope and 5-6 with a 40cm telescope
Weight: approx. 81 kg
Dimensions: 210 cm long, 30 to 60 cm wide, Height 50 cm
Storage temperature of spectrograph between -30° C and +40° C
Operating temperature between 0° C and 30° C

Composition

the Whoppshel spectroscope

Documents and Practical application

Assembly manual

Vu3D

Presentation of the Whoppshel (ESP at the time of the prototype in 2016)

The Whoppshel, a high resolution echelle spectroscope

The Whoppshel in use on a 60 cm telescope
