Kepler KL6060 BI CMOS Camera: 6K x 6K with 10 micron pixels

logo6060BI

Kepler KL6060 BI CMOS Camera: 6K x 6K with 10 micron pixels

Also Available with 90mm Shutter

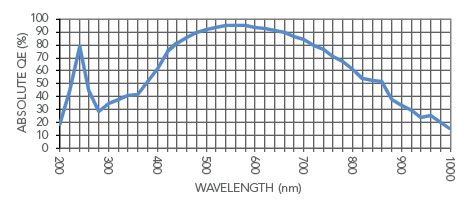

Absolute Quantum Efficiency

Product Data Sheet

Associated Links

The very large imaging area of the KL6060 FI scientific CMOS camera provides high sensitivity with low noise, even at multiple frames per second. The camera offers 4x the area of comparably priced 2K x 2K back illuminated CCD cameras.

Link to KL6060FI Specification Sheet in pdf format.

Link to KL6060 Brochure in pdf format.

The Kepler Series is a giant step forward in throughput, providing faster digitization, higher speed interfaces, and up to 35 channel readout. Sensors currently supported include front and back illuminated sCMOS. Future developments will include interline transfer CCDs and EMCCDs.

USB3.0 (3 Gbps)
Optional QSFP high speed fiber interface
Optional Electromechanical Shutter for Remote Acquisition of Calibration Frames
Choice of Windows - View Transmissivity Curves (left)
Air Cooling or Liquid Cooling (LC connectors sold separately)
Deep Cooling (up to 45C below ambient)
Optional Anti-Dew Technology (ADT)
LDR and HDR modes

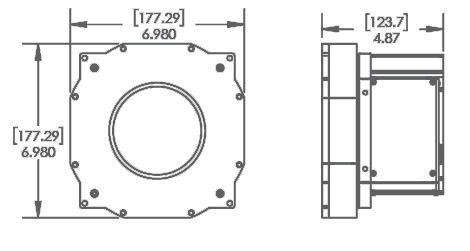

Small Footprint (as small as 10.2 x 10.2 x 10.7 cm)
Reaches operating temperatures in 10 minutes
Overview KL camera series

The KL6060 BI scientific CMOS camera has the same sensitivity and imaging area as the back-illuminated CCD230-84 CCD, but with a fraction of the noise even at multiple frames per second. Kepler cooled sCMOS cameras provide ultra-high sensitivity, ultra-low noise, and high frame rates, all at game-changing price to performance ratio.

Sensor Type	Back Illuminated CMOS
Sensor	GPixel GSense6060 BI
Shutter Type	Rolling
Active Pixels	6144 x 6144
Pixel Size (microns)	10 x 10 µm
Imaging Area (Diagonal)	61.4 X 61.4 mm (86.8 mm)
Full Well Capacity	102000 electrons
Typical Readout Noise	3.0 e-
Dynamic Range	90.3 dB
Frame Rate	11 fps (QSFP)
Cooling Method	Air and Liquid (see Note 1)
Max. Cooling (Air)	45°C below ambient
Temperature Stability	0.1°C
Dark Current (typical)	0.1 eps at -20C
Interface	USB 3.0 (Optional QSFP; see Note 2)
Data Bit Depth	16 bit (see Note 3)
Optical shutter	90mm
Optional Mounts	Medium Format Recommended (6x7)
Subarray Readout	Standard
External Trigger In/Out	Standard
SDK / Software	Kepler SDK / FLI Pilot
Weight	8.1 lbs (3.6 kg)
Note 1: Liquid circulation connectors sold separately. Note 2: QSFP = Quad Small Form factor Pluggable: high speed fiber optic interface Note 3: 16 bit data merged from two 12 bit conversions
