SBIG AFW Filter Wheels are fast and quiet, and are designed to be compatible with our full line of SBIG cameras. Two size formats are available:
Large Format AFW wheels are ultra-thin, minimizing back focus distance. The standard version, which accommodates filters ranging from 1 mm to 3 mm thick, uses only 0.55″ (14 mm) back focus. The tall version, which accommodates 5 mm thick filters, uses only 0.65″ (16.5 mm) back focus.
Ultra Large Format AFW wheels are designed for the new Aluma AC461 camera. Featuring dual carousels each holding six 65 mm filters, the wheel uses only 1.1″ (28 mm) of back focus. Coming soon – advance ordering available.
Compact Format AFW wheels are a lower-cost option for our compact Aluma CCD and STC-428 cameras. For users needing more filter slots, an adapter is also available to interface our compact format cameras to a Large Format AFW-16-36R.
| Filter Size | Choose an option Compact Format 36mm Round 36mm Round 36mm Round 5mm Tall 50mm Round 50mm Square 50mm Square 5mm Tall 50mm Round 5mm Tall 65 mm Square |
|---|
Large Format, 10 position, 50mm square filters. Compatible with Aluma AC455, Aluma AC4040, Aluma AC2020, and legacy STX and STXL cameras.
SBIG AFW Filter Wheels are fast and quiet, and are designed to be compatible with our full line of SBIG cameras. Several size formats are available:

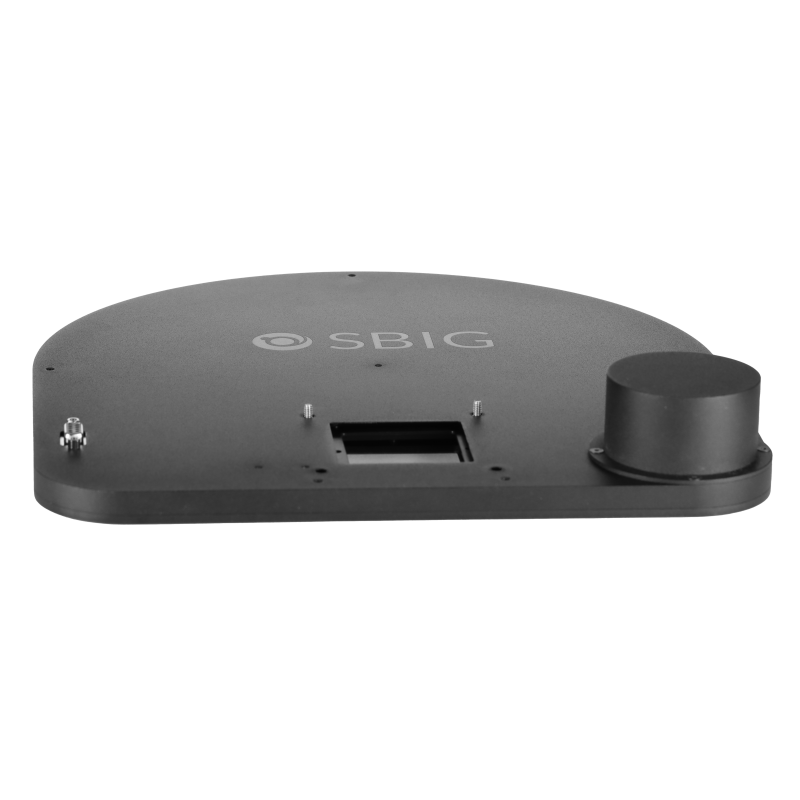

Large Format AFW wheels are ultra-thin, minimizing back focus distance. The standard version, which accommodates filters ranging from 1 mm to 3 mm thick, uses only 0.55″ (14 mm) back focus. The tall version, which accommodates 5 mm thick filters, uses only 0.65″ (16.5 mm) back focus.
Large Format AFW wheels are compatible with all SBIG cameras using our “STX” style adapter plates. This includes our popular Aluma AC Advanced CMOS models as well as our legacy STX and STXL models.
Large Format AFW wheels can also be used on our compact cameras using our AFW to Small Format Camera Adapter. This option provides more filter slots than our Compact Format wheels.
Ultra Large Format AFW wheels are designed for the new Aluma AC461 camera. Featuring dual carousels each holding six 65 mm filters, the wheel is only 1.1″ (28 mm) thick. Coming soon – advance ordering available. Download AFW-16-65SQ Data Sheet.

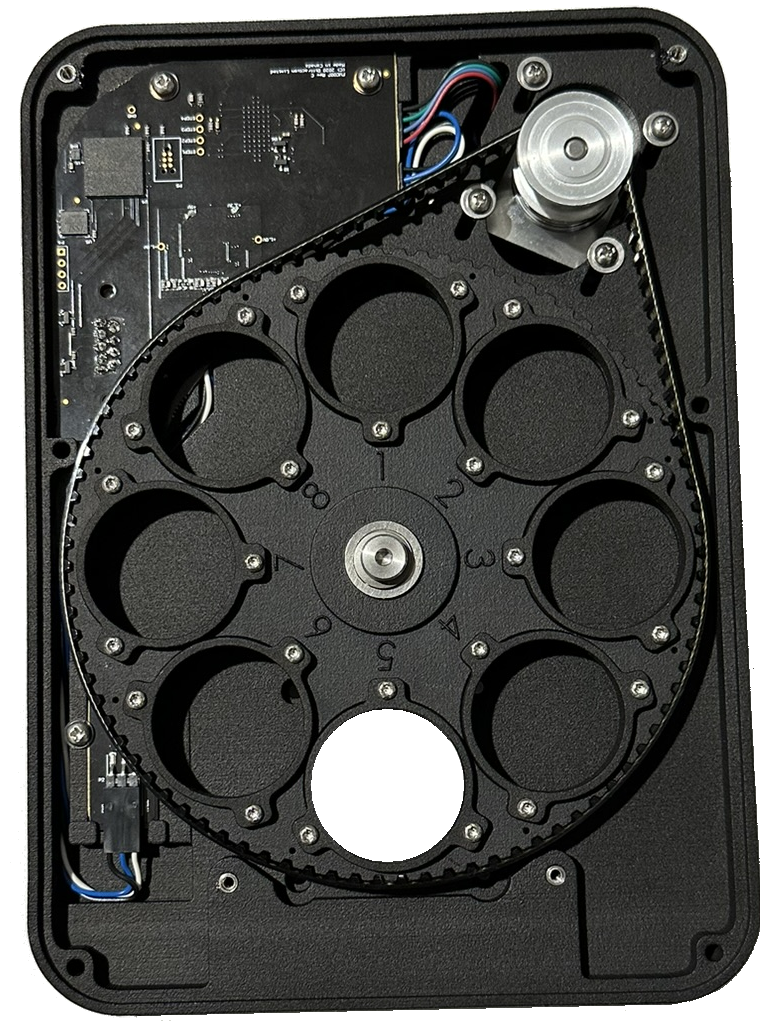

Compact Format AFW wheels are a lower-cost eight filter slot option for our compact Aluma CCD and STC-428 cameras. They accommodate both 3 mm and 5 mm thick filters, and also work with most legacy STF and STT models.
Multiple Versions Available
- AFW-12-65SQ Ultra Large Format
- Coming Soon!
- Designed for Aluma AC461 camera
- 65 mm Square Filters
- Dual stacked 6-slot wheel configuration
- Accommodates 1 mm, 2mm, and 3mm thick filters

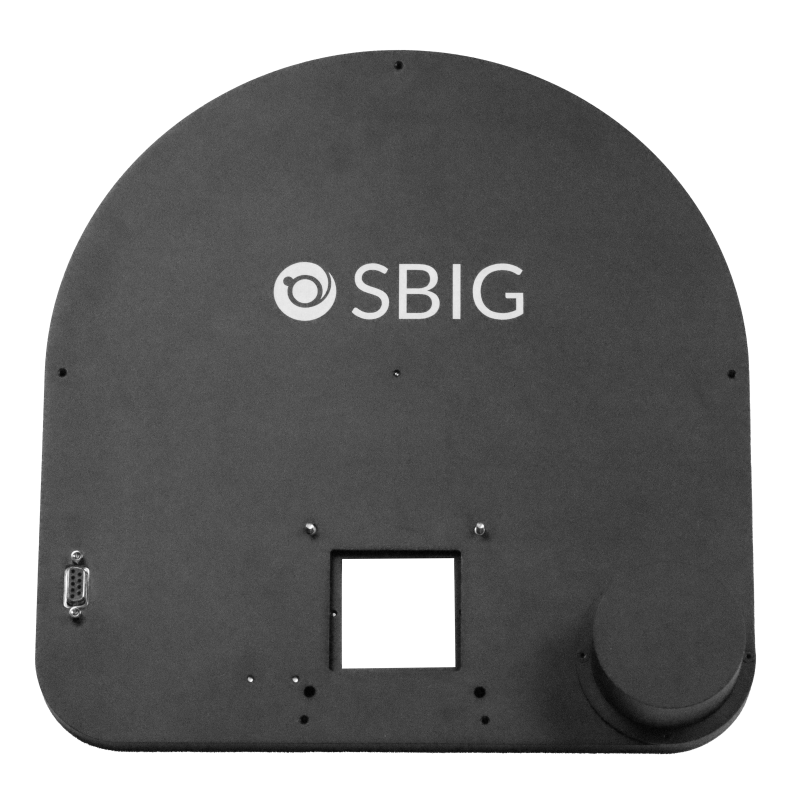

- AFW-16-36R Large Format
- 16 Filter Slots
- 36 mm Round Filters
- Accommodates 1 mm, 2 mm, and 3 mm thick filters
- AFW-16-36RT Tall Large Format
- 16 Filter Slots
- 36 mm Round Filters
- Accommodates 1 mm, 2 mm, 3 mm, and 5 mm thick filters
- AFW-12-50R Large Format
- 12 Filter Slots
- 50 mm Round Filters
- Accommodates 1 mm, 2 mm, and 3 mm thick filters
- AFW-12-50RT Large Format
- 12 Filter Slots
- 50 mm Round Filters
- Accommodates 1 mm, 2 mm, 3 mm, and 5 mm thick filters
- AFW-10-50SQ Large Format
- 10 Filter Slots
- 50 mm Square Filters
- Accommodates 1 mm, 2 mm, and 3 mm thick filters
- AFW-10-50ST Tall Large Format
- 10 Filter Slots
- 50 mm Square Filters
- Accommodates 1 mm, 2 mm, 3 mm, and 5 mm thick filters
- AFW-8-36R Compact Format
- 8 Filter Slots
- 36 mm Round Filters
- Accommodates 3 mm or 5 mm thick filters
- Lower cost option for compact cameras
| Camera Model | Recommended Filter Size | Adapters | Notes |
|---|---|---|---|
| Aluma AC4040 | 50 Square | ||
| Aluma AC2020 | 50 Round or Square | ||
| Aluma AC455 | 50 Square, or 50 Round for f/7 or higher | ||
| Aluma CCD (all) | 36 Round; all are compatible | ACC14 for large format wheel only | |
| STC-428 | 36 Round; all are compatible | ACC14 for large format wheel only | See below for STC-7 and STC-428-P |
| STX-16801 | 50 Square | Camera must operate on USB, not Ethernet | |
| STX-16803 | 50 Square | Camera must operate on USB, not Ethernet | |
| STX-9000 | 50 Square | Camera must operate on USB, not Ethernet | |
| STXL-16200 | 50 Round or Square | Camera must operate on USB, not Ethernet | |
| STXL-11002 | 50 Round or Square | Camera must operate on USB, not Ethernet | |
| STXL-6303 | 50 Round or Square | Camera must operate on USB, not Ethernet | |
| STT-8300 | 36 Round; all are compatible | ACC14, USB-FW | |
| STT-3200 | 36 Round; all are compatible | ACC14, USB-FW | |
| STT-1603 | 36 Round; all are compatible | ACC14, USB-FW | |
| STF-8300 | 36 Round; all are compatible | ACC14 | |
| STF-8050 | 36 Round; all are compatible | ACC14 | |
| STF-4070 | 36 Round; all are compatible | ACC14 | |
| STF-3200 | 36 Round; all are compatible | ACC14 | |
| STF-1603 | 36 Round; all are compatible | ACC14 |
