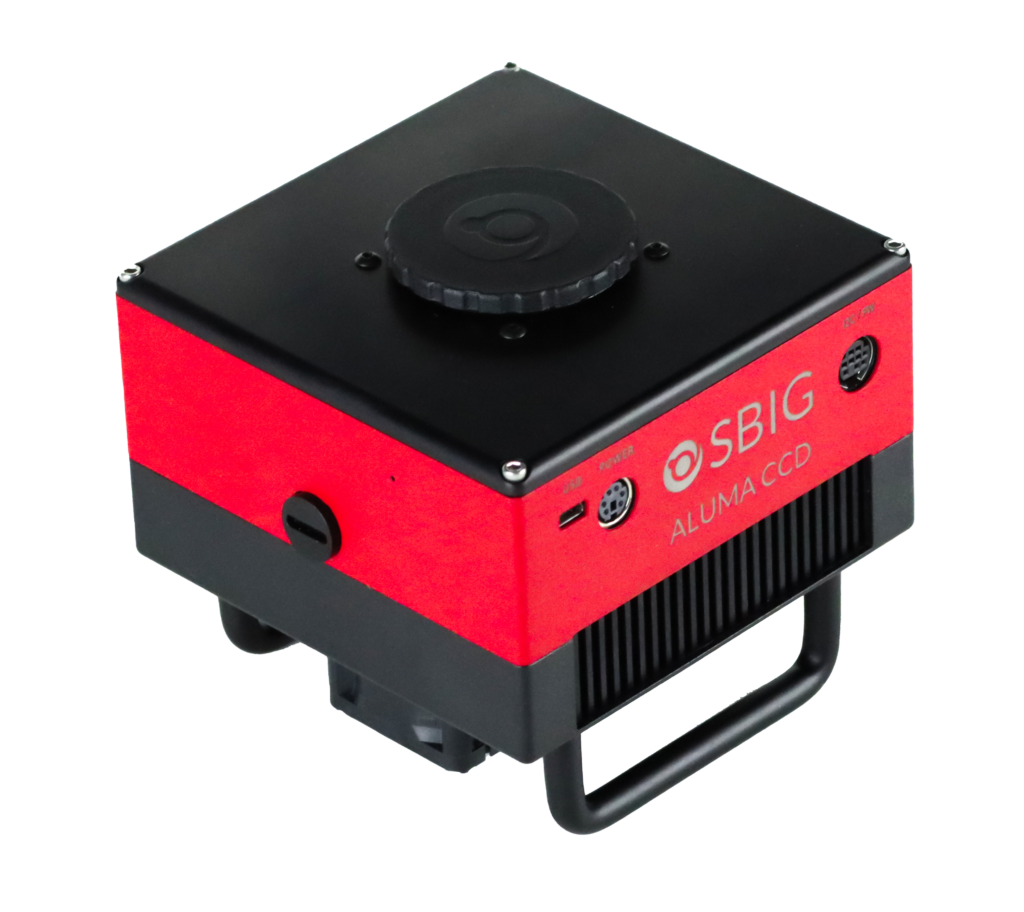

Our high performance Aluma® CCD Series cameras offer capabilities and features not available in any other scientific-grade imaging camera. This lightweight (2.2 lbs) and compact (4.5″ x 4.5″ x 4″ with handles) camera includes two-stage cooling, USB 2.0 interface, ultra-reliable even-illumination shutter, and fast low-noise readout.
The Aluma CCD series supports a wide range of accessories, including the 8-position AFW-8-36R filter wheel.
The Aluma CCD47-10 has an extremely high sensitivity, 1 megapixel back-illuminated CCD sensor with 13.3 micron pixels. These are research-grade cameras designed for longer focal length instruments typically with apertures greater than 40 cm.
Aluma CCD is a new generation of research cameras tuned for even better performance. Over two years of collaboration with university researchers helped us bring you an enhanced new Aluma CCD series that represent the ultimate in a high-performance mid-sized 16-bit CCD detector. Using E2V’s best-in-class research grade back-illuminated sensors, the Aluma CCD47-10 gives you the high sensitivity, low noise, and high well depth needed for the most demanding research applications.
Available with Midband (standard) and Enhanced UV (special order) coatings. Special order products require a deposit and have longer leadtimes. See QE chart below for more information.
| Sensor | Choose an option Midband Enhanced UV |
|---|---|
| Power Cable | Choose an option US European Australian |
Aluma CCD Features include:
- High-performance CCD imaging sensors currently manufactured by SONY and Teledyne E2V
- Light weight, compact design
- Centered optical axis for optimum instrument balance
- Ultra reliable even-illumination (photometric) mechanical shutter

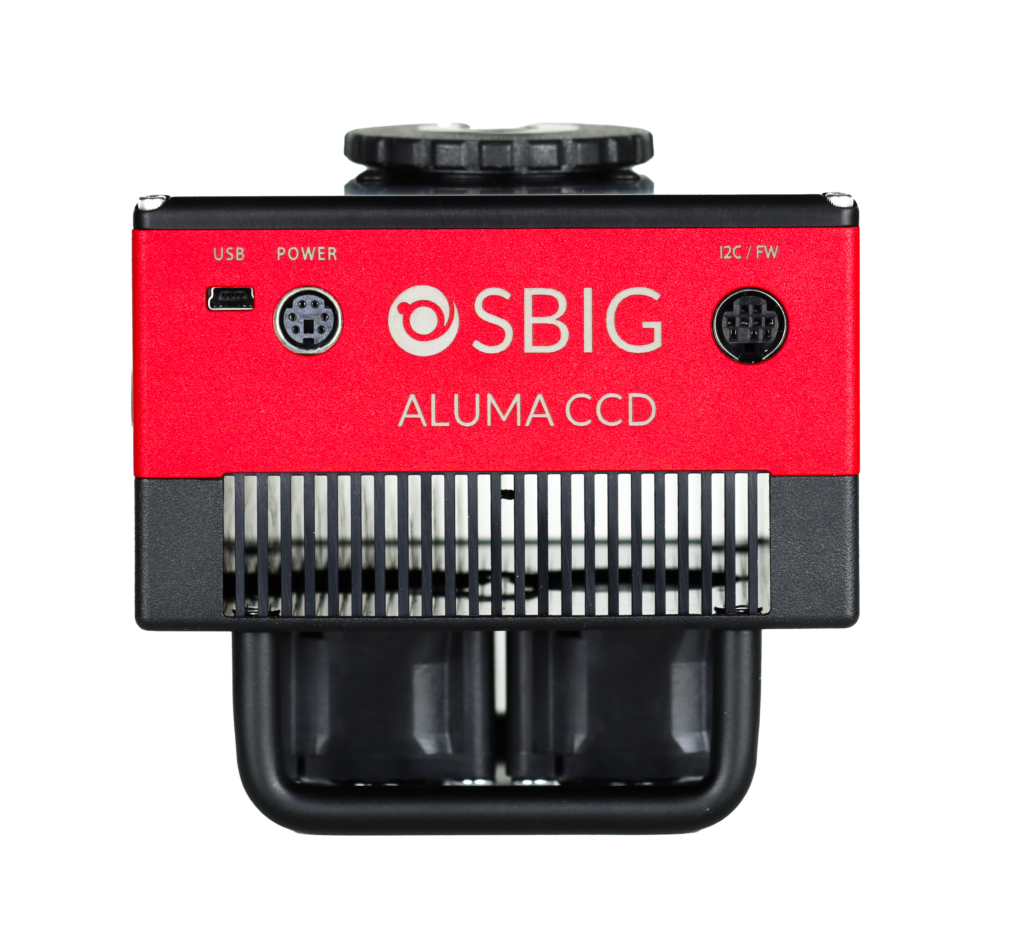

- USB 2.0 interface
- Full frame image buffering eliminates readout artifacts
- 2-Stage TE cooling with typical -50C from ambient

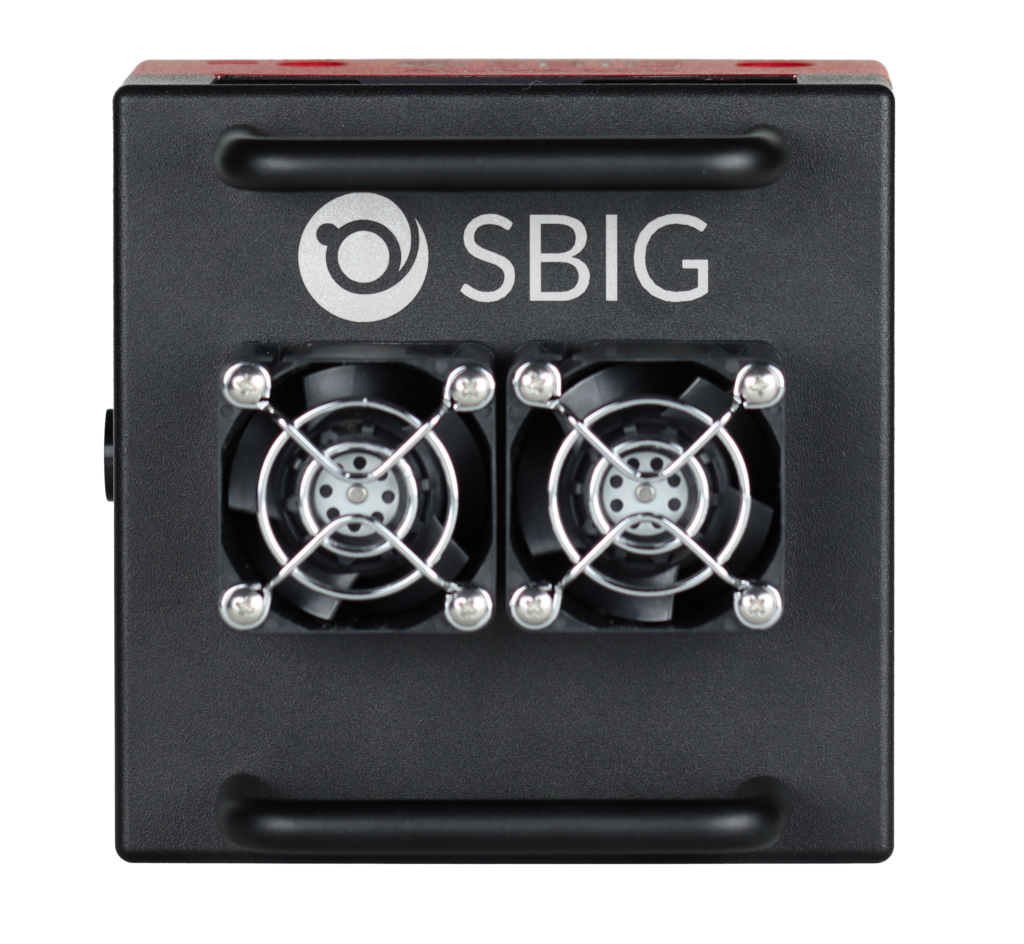

- Twin variable speed fans with SmartCoolingTM technology
- High accuracy temperature regulation
- Built-in RBI Pre-flash (full frame front-illuminated sensors only)
- External TTL trigger inputs and output
- Included 110V / 220V power supply and optional 12VDC operation
- User-rechargeable desiccant plug
- Built-in 1/4-20 tripod mount
- Support for high precision 8-position filter wheels
- Bulletproof firmware update capability – virtually impossible to “brick”
Advanced Software Included
All Aluma CCD models ship with MaxIm LT for Windows – a special version of MaxIm DL specific to our cameras. Aluma CCD also supports third-party applications through ASCOM and native drivers.
